GEPON 1GE ONU GDONU100-1GE

GDONU100-1GE EPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides ...

current position:HOME > PON

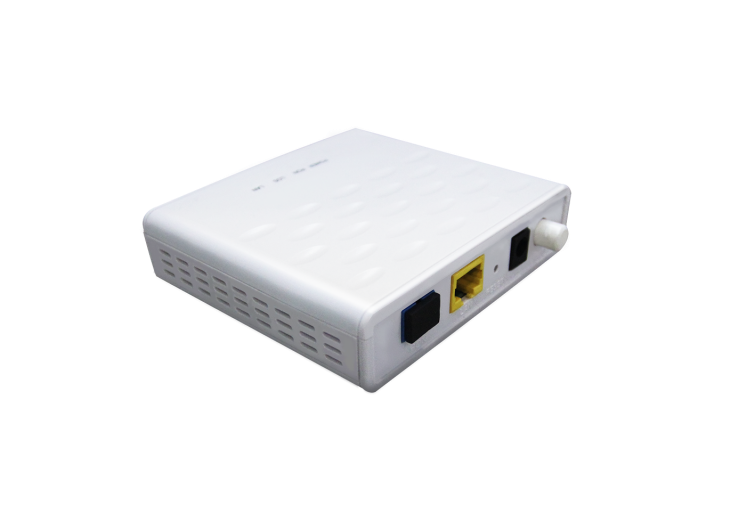

GEPON 1GE ONU GDONU100-1GE

Overview        GDONU100-1GE EPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides one 100/1000Mbps adaptive port, high-speed data and quality video services. It follows the 802.3ah IEEE international standards, with good interoperability and interoperability and can work with OLT of all the mainstream manufacturers. Features         Routing/bridge mode.
        It supports QoS function, realizing the reliable quality of service, and ensuring that the network service priority and service quality of different business.
        It supports China telecom standard defined OAM and extended OAM, including configuration, alarm, performance monitoring, fault isolation and safety management, etc., at the same time it supports the private OAM defined by Lootom, which cooperates with Lootom’s OLT to rich business control.
        It follows the international standards of IEEE802.3 ah, the communication industry standards of China (YD/T 1475-1475), meeting the latest requirement of the China telecom CTC2.1/3.0 , and can easily implement the interconnection with the mainstream standard OLT equipment manufacturers, mixing network and minimizing network construction cost. Technical Specifications

Item

GDONU100-1GE

User Networks interface

one fixed 100/1000M BASE-T self-adaptive RJ45 interface

PON interface

Up and down symmetrical transmission rate:1GBPS

Network coverage radius : 20 km

Optical interface typeSC/PC

Optical receiver with high sensitivity : ≥-26dBm

Luminous power-1~4dBm

Dimension

102 mm(W) x 91 mm(D) x 28 mm(H)

Box dimension: 235 mm(W) x 250 mm(D) x 70 mm(H)

Weight: 120g

Installation plug and play

Surroundings Parameter

Operating temperature050

Storage  temperature-4080

Power supply

DC12V/0.5A adapter type power supplying

Power consumption

<3.5W

Body case

Plastic case

Network diagram
