PRODUCT

GDCBM720M indoor EOC master

GDCBM720M series independent master is the multi-media access device which is based on HomePlug AV technique, the master ...

Current position:HOME > EOC

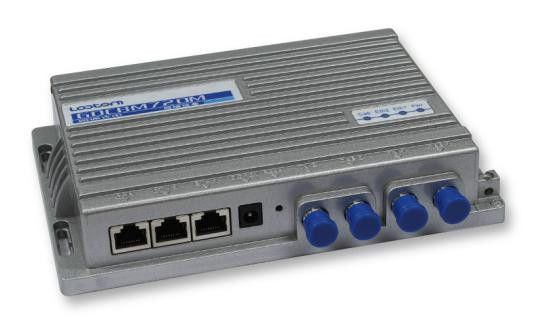

GDCBM720M indoor EOC master


Overview        GDCBM720M series independent master is the multi-media access device which is based on HomePlug AV technique, the master make Ethernet signal modulate, and mixed it with TV signal, transmit the multi-media signal to terminal through the CATV coaxial network.
       GDCBM720M adopt plug and play design, set up very easily, no need adjustment, the working status and frequency may auto scan and allocated. Features         Aluminum die-casting housing, excellent water-proof and heat dissipation performance
        Compatible with mature technique HomePlug AV(IEEE P1901)
        Physic rate is up to 500Mbps;Upstream and downstream transmit symmetry
        OFDM modulation technique, have good anti-noise performance;Support VLAN, total QoS quality guarantee;
        Support 10/100/1000Base-T/Tx Ethernet interface, support MDI/MDIX
        Comply with many kinds of network protocols;Plug and play, setup program is not request
        It is no need to change the existing HFC network by using taps/splitters.
        Support MIB library based at broadcast and television standard, support SNMP v1/v2/v3
        Modular design, high shielding performance;Provide 2 way TV input;provide 2 way cable signal output;DC12V power Technical Specifications

Item

Description

Standard

IEEE802.3IEEE802.3xIEEE802.3uIEEEP1901

EoC protocol

Comply with HomePlug AV standard

Protocol

CSMA/CA

Physical rate

300Mbps

Modulation method

support 4096/1024/256/64/16/8-QAMQPSKBPSK,ROBO

Data channel

Support data transmit between ethernet and coaxial cable network

Transmission distance

1 km through coaxial cable

Security

128-bit AES encryption

VLAN

IEEE802.1Q(VLAN lagging)

QoS

Support ToS and CoS package classification

flow control

Support flow control based at port

SNMP

SNMPv1v2v3

802.1X

Support IEEE802.1X access certification

Watchdog

Support monitoring CPU by watchdog

Management

Support user management based at SNMP,WEB and CLI

LED light

Power, Ethernet, Cable

Interface

2 TV interface,2 RF interface,2 Gbps ethernet ports,1 RST button

Power consumption

≦9W

Power supply

Input : DC12V

Dimension

162mm×168mm×34mm

Weight

0.5KG

Operation Temperature

045℃

Storage Temperature

-2070℃

Operation humidity

10% - 90%non-condensing
